lunedì 29 dicembre 2008



Figure 1, Figure 2, and Figure 3: Sagittal T2 and post contrast sagittal T1 weighted images demonstrate numerous enhancing intradural, extramedullary masses lining the roots of the cauda equina.
Figure 4, Figure 5, and Figure 6: A heterogeneously enhancing right paraspinal mass demonstrates heterogenous signal on T2 weighted images, highly suggestive of a schwannoma. There is no adjacent osseous erosion.

Diagnosis: Schwannomatosis

Schwannomatosis is a form of neurofibromatosis that has unique diagnostic criteria but can have findings that overlap with other forms of NF that can confound diagnosis.

Spectrum of neurofibromatosis:
- Neurofibromatosis Type I: Café au lait spots, skin fold freckling, Lisch nodules, cutaneous and plexiform neurofibromas, learning disabilities, and propensity for malignancy
- Neurofibromatosis Type II: Bilateral vestibular schwannomas, various other intracranial, spinal and cutaneous schwannomas, meningiomas, ependymomas. Ocular manifestations include cataract, retinal hamartoma
- Schwannomatosis: Schwannomas in multiple locations without the presence of vestibular schwannomas

Schwannomatosis, also known as neurilemmomatosis, is a condition of multiple non-vestibular schwannomas in a patient who has no other stigmata of neurofibromatosis type 2. Schwannomas are benign nerve sheath tumors that are usually solitary and occur sporadically. A definite diagnosis of schwannomatosis can be made when a patient older than 30 years has two or more nondermal schwannomas, one of which has been pathologically confirmed. There is however, a wide spectrum of overlap between schwannomatosis and NF2 such that a definitive diagnosis may be difficult to make.

Differences between schwannomatosis and NF2 include the age of presentation. Most patients with the former will present in middle age, whereas patients with NF2 present in the second to third decade of life. Patients with schwannomatosis generally do not have a corresponding family history, unlike NF2.

Imaging characteristics of the tumors in schwannomatosis are the same as those of sporadic schwannomas. Iso/hypointensity on T1 weighted images, hyperintensity (secondary to cystic change, and occasionally hemorrhage) on T2 weighted and STIR images and avid contrast enhancement are typical findings.

Dedicated imaging of the internal auditory canals and the brain should be pursued to help clarify the diagnosis. Follow up imaging is also indicated, especially if the diagnosis is not definitive, as malignant degeneration of an NF2 lesion would manifest as rapid increase in size of a mass.

martedì 23 dicembre 2008

Brain abscess secondary to frontal osteoma and sinusitis

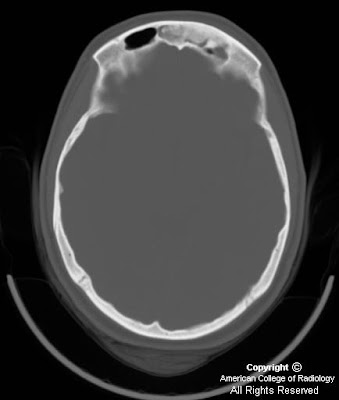

CT demonstrates a well marginated bone density lesion arising from the anterior left frontal sinus wall and protruding into the sinus lumen (Figure 1). Opacification is present in the superior left frontal sinus consistent with sinusitis (Figure 1). The posterior left frontal sinus wall is dehiscent (Figure 2).
MR demonstrates a multilocular ring enhancing process in the left anterior frontal lobe (Figure 1 and Figure 2). The center of the collection demonstrates high signal on diffusion weighted images (yellow arrows in Figure 6 and Figure 7). The overlying dura enhances as does the adjacent frontal sinus (Figure 4 and Figure 5). Vasogenic edema is present in the surrounding left frontal white matter (Figure 2 and Figure 3).

Diagnosis: Brain abscess secondary to frontal osteoma and sinusitis

Brain abscess is an infectious process which results in high morbidity and mortality if undiagnosed and untreated. In today’s era of antibiotics and refined neurosurgical technique, the major obstacle to successful treatment is delayed diagnosis. Noninvasive diagnostic imaging is critical for diagnosis and is directly responsible for improved patient outcomes in the last 10-15 years.

Brain abscess presents as a rapid developing space occupying syndrome usually beginning with a headache, followed by focal neurological deficit or seizure, and may progress to increased intracranial pressure, nausea,vomiting, and loss of consciousness. Fever is absent in 50% of cases as in this case.

Infection occurs by extension from a direct cranial focus or by hematogenous dissemination from an extracranial source with 50% incidence of each. Mastoiditis is the most common cranial source (30%) followed by sinusitis (15%). Hematogenous seeding accounts for 25%, of which endocarditis is the most common cause. No identified cause is found in 20% of cases. Rare causes include retrograde thrombophlebitis from a facial or dental infection, penetrating trauma, meningitis complication, and surgery.

The typical appearance of brain abscess on CT is a focal round lesion with hypodense center and surrounding vasogenic edema. If contrast is given, ring enhancement is seen. Abscess secondary to mastoiditis occurs in the temporal lobe and sometimes the posterior cranial fossa. Paranasal sinusitis results in frontal lobe location, and hematogenous dissemination usually results in multiple lesions following a vascular distribution.

On MRI, brain abscess demonstrates ring enhancement. Compared to other ring enhancing lesions, abscesses exhibit thinner, more regular, and more homogenously enhancing walls. Often, the cortical wall will be thinner. Classically, the lesion will have a T2 hypointense rim. A critical finding usually seen is central restricted diffusion corresponding to the infection products. Necrotic tumors seldom demonstrate restricted diffusion within the necrotic center. A dominant lesion will often demonstrate contiguous smaller satellite lesions. Another helpful finding is surrounding vasogenic edema which invariably is seen with abscess and neoplasm and rarely seen in other ring enhancing or restricted diffusion lesions such as demyelinating lesions. Lymphoma can be a difficult differential diagnosis as lymphoma usually restricts diffusion, causes vasogenic edema, ring enhances, and can have central necrosis. Clinical history of immunocompromise and location are occasionally helpful to differentiate from abscess.

This patient’s frontal sinus osteoma contributed to the frontal sinusitis and/or intracranial extension of the infection. Paranasal sinus osteomas are benign, asymptomatic bone growths that can rarely have intracranial complications including subdural empyema, abscess, CSF leak, and pneumocephalus. Osteomas demonstrate variable ossification from dense ivory type to a more ground glass appearance.

giovedì 18 dicembre 2008

Retinal hemorrhage in non accident trauma


Figure 1: T2*GRE axial image through the globe demonstrates nodular low signal in both retinas representing bloom artifacts from blood products suggesting retinal hemorrhage.
Figure 2: T2*GRE axial image shows low signal in the posterior parietal subdural space suggesting subdural hemorrhage.
Figure 3: Axial T1 image shows left frontal subdural fluid collection similar to CSF signal suggesting subdural hygroma.

Diagnosis: Retinal hemorrhage in non accident trauma

Child physical abuse is an unfortunately common occurrence that may manifest as any pattern of injury. Some patterns of injury (metaphyseal fractures, posterior rib fractures, subdural hemorrhages, retinal hemorrhages) are more suggestive and specific than others. Child abuse is often misdiagnosed and under-recognized by physicians and caregivers.

Non-accidental head injury (NAHI) or shaken baby syndrome (SBS), (some authors prefer the term shaken-impact syndrome), occurs in 12% of the physically abused children and is a major cause of neurological disability and death during infancy. Radiological imaging plays a crucial role in evaluating cranial injury, both for guiding medical management and the forensic aspects of abusive trauma. The neurologic injuries are more devastating than other injuries. NAHI is the leading cause of morbidity and mortality in abused children. MRI is the test of choice over CT for detecting different ages of intracranial hemorrhages, shearing injuries, and retinal hemorrhages.

Subdural hemorrhage is the most common intracranial lesion in shaken baby syndrome. Other findings are cerebral edema, subarachnoid hemorrhage, intraparenchymal hemorrhage, intraventricular hemorrhage, diffuse axonal injury, shearing injury, ischemia and brain herniation. Retinal hemorrhages may be found in 50%-100% of shaken infants, the prevalence of retinal hemorrhages in victims who die approaches 100%. Retinal hemorrhage is a characteristic and diagnostic feature of SBS. The severity of retinal hemorrhage is strongly correlated with intracranial injury in SBS. It is therefore very important to recognize retinal hemorrhage on neuroimaging.

mercoledì 17 dicembre 2008

Cerebral amyloid angiopathy (CAA)


Head CT demonstrates bilateral temporal hemorrhage (left > right) with scattered small vessel ischemic disease.
Head MRI again demonstrates the two hemorrhages seen on the CT, in addition there are multiple scattered bilateral black dots with no significant mass effect. No extracerebral fluid collections are present, and there is no abnormal enhancement. There was no diffusion restriction.

Differential diagnosis:
- Cerebral amyloid angiopathy
- Hemorrhagic metastasis
- Hypertensive micro hemorrhages
- Multiple venous malformations

Diagnosis: Cerebral amyloid angiopathy

Key points

Common cause of atraumatic parenchymal hemorrhage in elderly, particularly those with dementia.
Lobar hemorrhage > microangiopathy > focal "amyloidoma" (least common).
CAA hemorrhages frequently spare the basal ganglia. By contrast, hypertensive hemorrhages frequently involve the basal ganglia.
15-20% of atraumatic intracerebral hemorrhage in normotensive patients > 60 yrs.
27-32% of normal elderly (autopsy).
82-88% in patients with Alzheimer disease (AD).
Also common in Down syndrome.

lunedì 15 dicembre 2008

CNS schistosomiasis


Figure 1: Axial T2-weighted MR image shows vasogenic edema and mass effect involving left temporal lobe.
Figure 2: Axial contrast-enhanced T1-weighted MR image shows multiple areas of central linear enhancement surrounded by enhancing punctate nodules.
Figure 3: Coronal contrast-enhanced T1-weighted MR image confirms linear and nodular enhancement pattern in a different imaging plane.

Diagnosis: CNS schistosomiasis

CNS Schistosomiasis is caused by infestation with trematode (fluke) worms. The host is the freshwater snail that releases Schistosoma cercariae into the water. The cercariae infect humans percutaneously and transform into schistosomula. The schistosomulae migrate to the lungs and liver and then descend to the mesenteric venous system.

Characteristic MR findings demonstrate a central linear enhancement, surrounded by multiple enhancing punctate nodules 1-2 mm in diameter, clustered in a masslike structure with an arborized appearance. On T2-weighted images, the lesions are hyperintense with associated surrounding vasogenic edema and mass effect. This pattern of enhancement has not been observed in association with other CNS worm infections or disease processes. The differential diagnosis for Schistosomiasis may include cerebritis, metastatic disease, tuberculosis, sarcoidosis and possibly anaplastic astrocytoma.

At biopsy, the enhancing nodules seen in the patient were thought to represent granuloma formation with extensive surrounding inflammation and possible venous congestion. Such granulomatous lesions are believed to represent either military pseudotubercles or confluent granulomata containing fibrosis, necrosis, hemorrhage, thrombosis, demyelination, calcification, and arteritis. The morphology and placement of the spine (absent, lateral, or terminal) of the ova can be used to identify the schistosomal species. S.mansoni has a broad lateral spine (as seen in our 32-year-old patient). S. haematobium has a prominent terminal spine, and S.japonicum has a rudimentary or absent spine. It is postulated that the central linear enhancement that was observed is the result of slow blood flow and local venous obstruction caused by the anomalous migration of the adult worm in the leptomeningeal veins. Such placement might result in the concentration of ova at a focal region, forming a nodular mass.

Although the enhancement pattern observed may not be a sensitive indicator for CNS schistosomiasis, it is found to be a specific one. An early diagnosis may be made on the basis of the contrast-enhanced T1 weighted MR imaging findings alone. Early diagnosis, along with treatment, will lead to a more favorable outcome. The patient was found to have complete resolution of abnormal findings on follow-up imaging studies after undergoing treatment with Praziqunatel combined with corticosteroid therapy.

giovedì 11 dicembre 2008

Monostotic clival fibrous dysplasia


CT: Expansile, lytic lesion of the clivus is present without cortical disruption. The lesion has a ground-glass appearance. It is lytic centrally and sclerotic peripherally. Bilateral jugular tubercle and right occipital condyle involvement also present.
MRI: Heterogenous (T2 hyper intense and T1 hypo intense) expansile clival lesion. The majority of the lesion demonstrates avid contrast enhancement. The brain parenchyma is normal.

Differential diagnosis:
- Fibrous dysplasia
- Chordoma
- Chondrosarcoma
- Plasmocytoma
- Metastasis
- Lymphoma

Diagnosis: Monostotic clival fibrous dysplasia


Monostotic clival fibrous dysplasia is a rare entity (According to Sirvanci et al., only 3 cases were reported in the literature by 2002). Overall, craniofacial fibrous dysplasia represents three percent of bone tumors. Fibrous dysplasia is a developmental disorder felt to be secondary to a genetic mutation. It is not hereditary. It results in abnormal fibroblast proliferation with replacement of normal medullary bone. This causes expansion and structural integrity compromise.

Fibrous dysplasia can be classified as monostotic and polyostotic. The polyostotic form represents 30% of cases and can present as part of Albright-McCune-Sternberg syndrome. The initial presentation in the majority of cases is in the first two decades of life. No racial or gender predilection has been described. Besides craniofacial involvement, other commonly involved areas include the ribs, femurs, tibias, and the pelvis.

Management is almost always conservative with followup imaging to evaluate for stability if warranted (typically CT). Surgical treatment may be warranted if neurological compromise or significant pain develops. Rarely (0.05% of monostotic craniofacial lesions), malignant transformation may occur.

Radiologic Overview

MRI and CT are the best imaging modalities for clival evaluation. On MRI, fibrous dysplasia appears as hypo intense on T1 weighted images. The imaging characteristics on T2 weighted images are variable from hypo intense to isointense to hyper intense. The variability on T2 weighted images is attributed to several factors including (but not limited to) cellularity, cyst formation, and presence of collagen. Avid enhancement after gadolinium administration is typically present.

On CT, a ground glass appearance is associated with fibrous dysplasia. Additionally, a sclerotic border is also present. Smaller cystic, circumscribed areas are present within the lesion. Overall, CT is superior to evaluate for subtle change and internal lesion structure. If nuclear scintigraphy is performed (not necessary), mild, nonspecific activity is usually present in the clivus.

mercoledì 10 dicembre 2008

Cavernous malformations


CT shows multiple well circumscribed hyperdense lesions scattered throughout the brain parenchyma without any perilesional edema or extra-axial fluid collections. No mass effect.
MRI FLAIR images show mixed signal intensity of the “popcorn” lesions seen on CT. T1 images show increased signal consistent with blood products. GRE sequences show blooming of artifact and post contrast examination shows no enhancement.

Differential diagnosis for "Popcorn ball" lesion:
- Cavernous malformation
- Hemorrhagic neoplasm
- Calcified neoplasm (oligodendroglioma)

Differential diagnosis for multiple black dots:
- Cavernous malformation
- Old trauma (contusions, DAI)
- Hypertensive petechial hemorrhage
- Amyloid angiopathy
- Capillary telangiectasis

Diagnosis: Cavernous malformations

Key points

Benign vascular hamartoma with masses of closely apposed immature blood vessels ("caverns"), intralesional hemorrhages, no neural tissue.
CM = most common angiographically "occult" vascular malformation, approximate prevalence 0.5%.
75% occur as solitary, sporadic lesion.
10-30% multiple, familial.

Zabramski classification of CMs:
- Type 1 = subacute hemorrhage (hyper intense on T1WI; hyper- or hypo intense on T2WI)
- Type 2 = mixed signal intensity on T1-, T2WI with degrading hemorrhage of various ages (classic "popcorn ball" lesion)
- Type 3 = chronic hemorrhage (hypo- to iso on T1-, T2WI)
- Type 4 = punctate micro hemorrhages ("black dots"), poorly seen except on GRE sequences

Most common signs/symptoms:
- Seizure 50%
- Neurologic deficit 25% (may be progressive)
- 20% asymptomatic

martedì 2 dicembre 2008

Occlusive atherosclerosis of the internal carotid artery (ICA) and secondary angiographic string sign


Figure 1: The left proximal common carotid artery demonstrates an atypical high-grade waveform, and a high resistance systolic upstroke. This waveform is more characteristic of the external carotid artery, and less like the internal carotid artery.
Figure 2: There is complete absence of flow in the left ICA and the ICA on grayscale appears completely occluded.
Figure 3 and Figure 4: Lateral views show the angiographic string sign. Early arterial phase images demonstrate a 99% stenosis of the proximal ICA. A trickle of contrast material is seen in the ICA distal to the stenosis.

Differential diagnoses
- String sign secondary to atherosclerosis at the proximal ICA and distal collapse of the ICA
- Dissection of the ICA
- Subacute/chronic thrombosis of the ICA
- Carotid artery stenosis secondary to radiation

Diagnosis: Occlusive atherosclerosis of the internal carotid artery (ICA) and secondary angiographic string sign

Atherosclerosis is the most common cause of the angiographic string sign. As the plaque enlarges, the pressure threshold for continued antegrade flow distal to the stenosis is reached. The distal ICA vessel lumen collapses as a result of decreased flow leading to the production of the string sign.

Carotid duplex ultrasound with color Doppler flow imaging and CT are first line diagnostic modalities for patients with symptomatic atherosclerotic vascular disease. When an occlusion of the carotid artery is seen, confirmatory imaging may be requested because differentiation between partial occlusion and a complete occlusion has important therapeutic implications.

The North American Symptomatic Carotid Endarterectomy Trial (NASCET) demonstrated a significantly decreased risk of stroke in patients with at least 70% stensoses, undergoing endarterectomy versus medical management (9% vs. 26%, respectively).

venerdì 28 novembre 2008

Vasculitis / Behcet disease


Figure 1, Figure 2, and Figure 3 demonstrate increased signal in the region of the bilateral basal ganglia, left thalamus, subthalamic region and brainstem. Diffusion-weighted images shows an area of restricted diffusion (Figure 2 and Figure).
Figure 4 shows contrast enhancement on T1WI in the left basal ganglia and focal meningeal enhancement.
Figure 5 single voxel MR spectroscopy within the region of interest demonstrates increased choline, slightly decreased NAA, and presence of lactate peak.
Figure 6, Figure 7, and Figure 8 Sagittal and axial T2 and axial T1 post contrast images show an abnormal long segment of high T2 signal in central cervical cord with subtle contrast enhancement.

Diagnosis: Vasculitis/Behcet disease

CNS vasculitis is a heterogeneous group of disorders characterized by nonatheromatous inflammation and necrosis of blood vessel walls. Arteries and veins are affected; it can involve intracranial vessels of any size.

A variety of systemic inflammatory diseases can cause vascular inflammation and stroke. Neuro-Behcet is a type of CNS vasculitis. Behcet disease is a chronic, relapsing, inflammatory disease characterized by presence of recurrent and usually painful mucocutaneous ulcers, genital lesions, ocular lesions, neurologic manifestations and cutaneous manifestations. Behcet is uncommon in the United States.

Neurologic manifestations are seen in approximately 10-25% of patients with Bechet disease. CNS manifestation results from arterial or venous thrombosis. Neuro-Behcet disease (NBD) usually shows three clinical patterns: A brainstem syndrome, a meningomyelitic syndrome and an organic confusion syndrome.

The typical MRI findings are multiple focal T2 signal abnormalities, restricted diffusion in the acute phase of disease, and patchy vascular and leptomeningeal enhancement. The most common site of involvement is the brainstem, followed by white matter, internal capsule and basal ganglia or thalamus. Brainstem atrophy is one of the manifestations of chronic NBD. Meningeal involvement is a less frequent finding. Follow up studies show change in site, size and shape of the lesions. Cerebral venous thrombosis is seen in approximately 0.6 to 10% of Behcet disease. The spinal cord involvement is rare. It usually shows long segment lesions demonstrating high signal in T2 WI, which may show patchy enhancement. Thoracic and cervical cords are usual sites of involvement.

In the largest series to date, the clinical features and outcomes of 200 patients with Behcet disease and neurologic involvement were reported. On average, a period of approximately 5 to 6 years elapsed between the onset of the earliest non-neurologic symptoms of Behcet disease and the appearance of neurologic symptoms or findings. In a small percentage of Behcet, neurologic findings may appear concurrently or precede non-neurologic features.

The prognosis varies with the type of neurologic process. Those with dural venous thrombosis or other non-parenchymal processes are less likely to have recurrent disease, disability, or premature death. By comparison, patients with parenchymal disease have a worse outcome.

giovedì 27 novembre 2008

CPPD of the cervical spine - "crown dens syndrome"


Figure 1: Sagittal view from a CT of the cervical spine utilizing a bone algorithm demonstrates a well-defined subchondral cyst in the odontoid process associated with partially calcified retro-odontoid soft tissue. There is also an erosion of the C5 spinous process as well as a fluid collection interposed between the spinous processes of C4 and C5. Calcification of the C2/C3 intervertebral disc is also noted. There is also minimal calcification of the longus colli.

Differential for crystal arthropathies that involve the cervical spine include
- Hydroxyapatite deposition disease
- Gout
- Other (rare)

Diiagnosis: CPPD of the cervical spine - "crown dens syndrome"

CPPD (calcium pyrophosphate deposition disease) is one of the entities known to cause crystal deposition in cartilage. It is most commonly found to be idiopathic, but other etiologies include a hereditary autosomal dominant condition, hyperparathyroidism, and hemochromatosis. While the classic locations for CPPD include the triangular fibrocartilage of the wrist, menisci of the knee, and pubis symphysis, the spine can also be involved. CPPD crystal deposition can be found in several structures of the spine including the ligaments, intervertebral discs, joint capsules, and synovium.

CT is the best modality to see the various calcific deposits in the cervical spine, while MRI is usually used to evaluate for spinal cord compression or myelopathy. Imaging findings include calcification of the intervertebral disc as well as disc space narrowing, “vacuum phenomena,” and vertebral sclerosis. Calcification in the periodontoid tissue in association with acute neck pain has been coined the “crown dens syndrome.” In addition to this acute symptomatology, these calcifications, particularly in the retro-odontoid region, can eventually lead to neurologic compromise from mass effect in the form of ventral cervicomedullary compression in the elderly. Deposition within the joints, such as the atlantoaxial and facet joints, can lead to erosions, subchondral cysts and pathologic fractures. CPPD deposits in the spinal ligaments can cause either a focal or diffuse enlargement of the ligaments and cause spinal stenosis.

The differential for calcific deposits in the cervical spine is a limited one. Hydroxyapatite deposition disease (HAAD) can present with periodontoid calcifications and can be indistinguishable from CPPD on CT. Patient history and, ultimately histological analysis of the crystals, help differentiate between the two. HAAD can also present as a calcific tendonitis with calcifications in the longus colli muscles, usually at the C1-C2 level. The inflammatory response to the CPPD deposits in the intervertebral disc space can be aggressive enough to mimic a discitis. Correlation with the patient’s clinical history would be helpful. In difficult cases, a biopsy may be needed. Gout can cause similar findings as CPPD including erosions of the cervical osseous elements, including the odontoid process, as well as mimic a discitis. Gout’s main imaging findings include erosions and proliferative osseous changes. Clinical history and/or crystal analysis may be needed for definitive diagnosis.

mercoledì 26 novembre 2008



CT shows a large circumscribed vertex mass in the right parietal region with heterogeneous hyperdensity and calcification. There is significant vasogenic edema and minimal if any mass effect or midline shift.

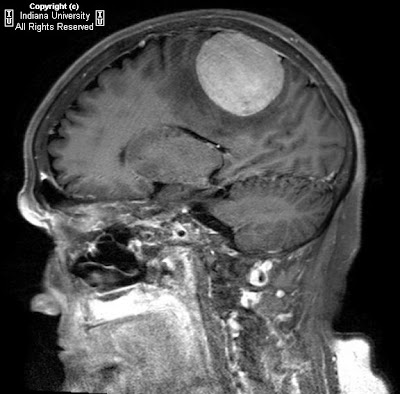

MRI from next day shows broad attachment of the lesion to the dura with moderate contrast enhancement. T2 prolongation compatible with vasogenic edema is again present.

Differential diagnosis:
- Meningioma
- Metastatic disease with hemorrhage and/or calcification
- Low grade astrocytoma
- Angiosarcoma
- Tuberculoma

Diagnosis: Meningioma


Meningiomas are thought to arise from arachnoid cap cells and may arise in the spinal cord or intracranially. Fewer than 10% are symptomatic. They may present with headache, seizure, or focal neurologic signs due to cranial nerve or brain parenchymal compression or vascular compression. Known causes include radiation and genetic abnormalities (including a relationship to NF2). Other causes are speculated as well. Meningiomas are generally considered benign tumors. However, a few histologic types can break this rule and invade cortex and even metastasize. Therapy includes conventional surgery and radiosurgery. Chemotherapy can be used following resection. Angiography is often performed for surgical planning and occasional embolization.

Radiologic overview of the diagnosis

Plain films of the skull may demonstrate hyperostosis and increased vascular markings. CT and MRI demonstrate extra axial, dural based lesions. Meningiomas typically enhance homogeneously and may have an enhancing dural tail (which may be more evident on coronal or sagittal MRI depending on the location)..On CT, the lesion may be isoattenuating to hyper attenuating but may contain calcifications. Vasogenic edema will likely be present and may be more apparent on MRI. T1 and T2 signal is variable. MR spectroscopy demonstrates a high alanine peak. Buckling of the cortex (seen in this case) is strongly suggestive of an extra axial lesion and should narrow the differential diagnosis. Other clues to extra axial location are brain cysts and trapped CSF. Angiographic findings include a sunburst vascular pattern and "mother-in-law" blush (comes early and stays late).
